New - Build-To-Order Ironcraft 1915 Flex-Wing Cutter | Agricultural Mowers
Have one to sell?
ConditionNew
New

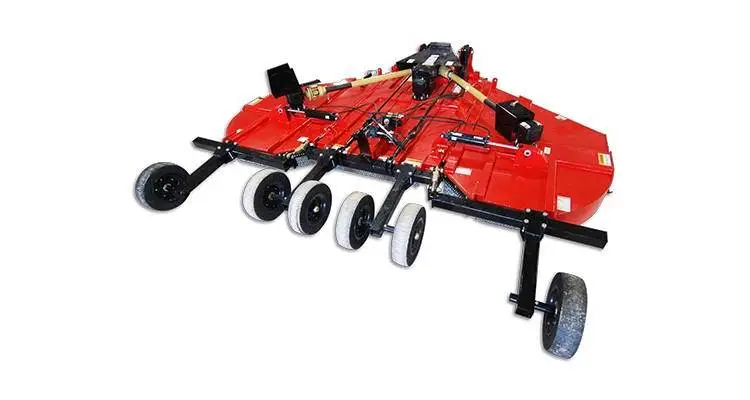

With its heavily braced decks and triple spring suspension, this Flex-Wing Rotary Cutter is designed for heavy-duty applications such as weeds, grass, and brush up to 4” diameter. Designed for use with tractors of 55 hp minimum, the cutter has a 180” cut width. The cutter uses three spindles with two free-swinging blades each, which reduce the shock of impact when a stationary object is contacted. Slip clutches protect the gearboxes and drivelines from damage. Standard equipment includes driveline shields and clutch shields. Front and rear chain discharge shields and a safety tow chain are standard.
Cut Width: 180 in.
Cut Height: 2 in. - 15 in.
Cutting Capacity: Up to 4 in.
Recommended Minimum HP: 55 HP
Outboard Gearbox Pwr Rating: 190 HP
Splitter Gearbox Pwr Rating: 235 HP
Gearbox RPM: 540 RPM - 1000 Optional
Input PTO: ASAE Cat 8 Constant Velocity
Wing Drive PTO: ASAE Cat 6
Gearbox Warranty: 5 Yr Limited
Hitch: Swivel Pivot
Deck Thickness: 7 Gauge or 3/16"
Side Skirt Material: 1/4 in. X 12 in.
Suspension: Triple Spring
Blades: 1/2 in. X 4 in.
Blade Tip Speed: 17,135 Fpm
Blade Overlap: 6 1/2 in.
Blade Carrier: 3/4 in. Round Disc
Overall Width: 188 in.
Overall Length W/Wheel: 189 in.
Overall Weight: 5175 lb.
Wheel Type: 5 LUG Standard Laminated - Used Aircraft Tires Optional
Skid Shoes: Replaceable
Front/Rear Chain Guards: Standard
Tow Chains: Standard
Wing Flex: 88 Degress Up - 22 Degress Down
