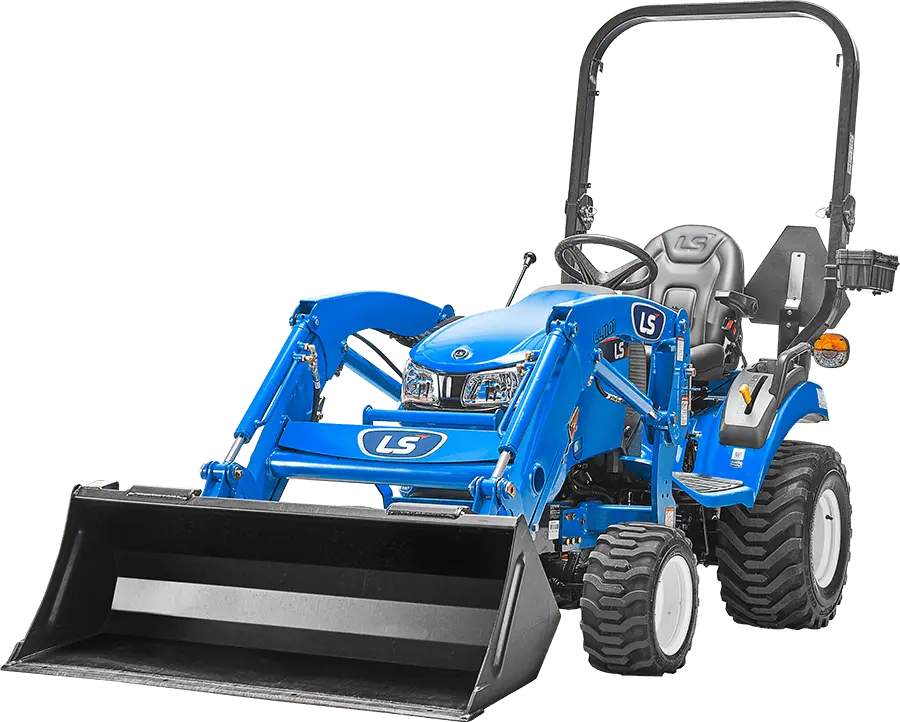

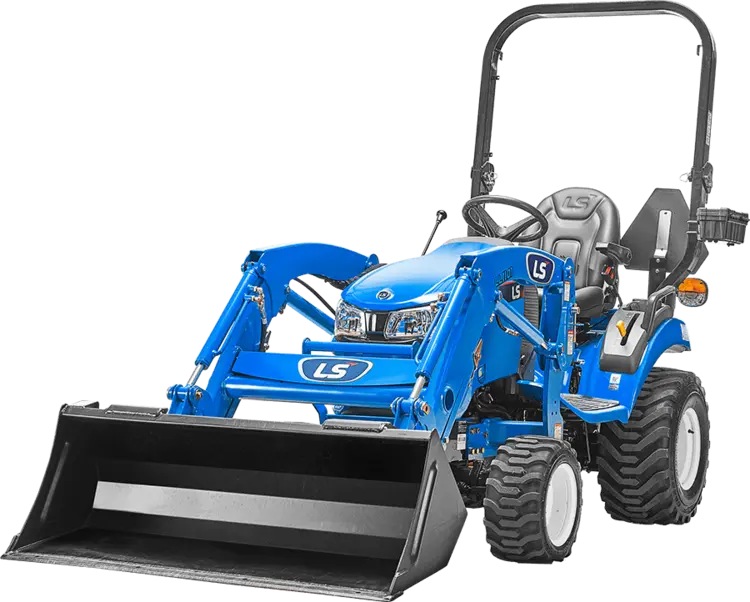

Sub-Compact
The MT1 Sub-compact incorporates a user-friendly ergonomic design into a robust and quality tractor. The MT1 standard features provide an exceptional operator experience in a variety of applications.
Features
4WD (FRONT WHEEL MECHANICAL ASSIST)
The MT125-24.7HP Sub-Compact Tractor features 4WD so you can get all your heavy duty pulling with no scuff. Go from 2WD to a 4WD with a simple move of a lever.
Dual Pedal
DUAL PEDAL, 2 RANGE HST
Our MT125 model features the highly preferred dual pedal. Easier and more comfortable than rocker pedals and smoother switch.
INDEPENDENT PTO
Easiest PTO to operate that can be turned on or off with a switch.
PTO SELECTOR SWITCH
Allows you to select the rear-PTO, mid-PTO or both.
STANDARD MID PTO
2000 RPM Mid PTO for optional 60” mid-mount mower or 50” front mount snow blower.
STANDARD HYDROSTATIC POWER STEERING
Ditch the mechanical link—introducing hydrostatic power steering for ultimate flexibility, parts costs, and assemble-ability. This feature makes turning easier, improves control and reduces fatigue.
STANDARD FOLDABLE ROPS
Introducing foldable ROPS for storage allowance in low clearance buildings or sheds.
3-POINT HITCH
Category 1 with a hitch lift capacity of 966 lbs. is smooth and responsive.
ERGONOMICALLY DESIGNED 3-POINT HITCH CONTROLS
Easily accessible for maximum comfort and convenience with hydraulic position control.
EASILY ADJUST MOWING HEIGHT
Adjusting the cutting height for the available 60″ mid-mount mower is as easy as turning a dial.
TOOLBOX
Convenient storage keeps tools handy.
YANMAR TIER 4 ENGINE AND EASY OPEN HOOD
Tier 4 engine that provides reliable power and performance. Includes an Easy Open Hood for quick accessibility for easy maintenance.
MODERN ERGONOMIC DESIGN
This small chassis compact is ergonomically designed and stylish.
COMFORTABLE HIGH-BACK SEAT
Supportive and comfortable seat reduces fatigue and reverses position for backhoe use.
ENGINE
Type: 3-cylinder, Indirect-injection, Water-cooled
Model (Tier 4 ): Yanmar 3TNV80F
Engine HP (Gross): 24.7
PTO HP: 17.2
Rated Speed (RPM): 3,000
Displacement (cu in.): 77.3
Fuel Tank Capacity (gal): 6.6
Alternator (V-A): 12V – 40
DRIVE TRAIN
Transmission: Hydrostatic Drive
No. of Speeds: 2 Ranges
Brakes: Wet, Multi-Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Mid PTO: Standard (2500 rpm)
Rear PTO: Standard (540 rpm)
HYDRAULIC SYSTEM
Implement pump (gpm): 4.6
Steering pump (gpm): 2.1
Total flow (gpm): 6.7
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb.): 966 (728 @ 24″)
Lift control type: Position
DIMENSION
Overall length (Bumper to link, in.): 97
Wheelbase (in.): 56
Min. overall width with IND tires (in.): 47
Height to top of ROPS (in.): 87
TIRE SIZE
Industrial Front/Rear: 18×18.5 – 10/26 x 12.0 – 12
Versa Turf Front/Rear: 18×18.5 – 10/26 x 12.0 – 12
WEIGHT
Total weight without ballast (lbs.): 1,444
