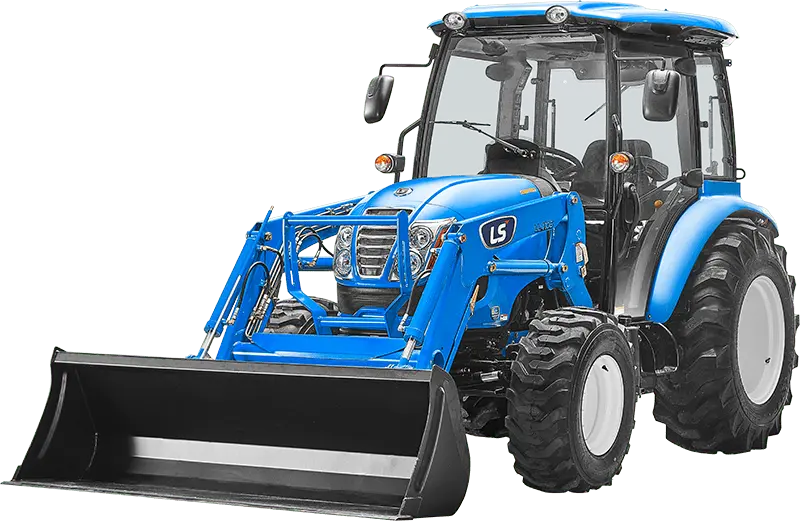

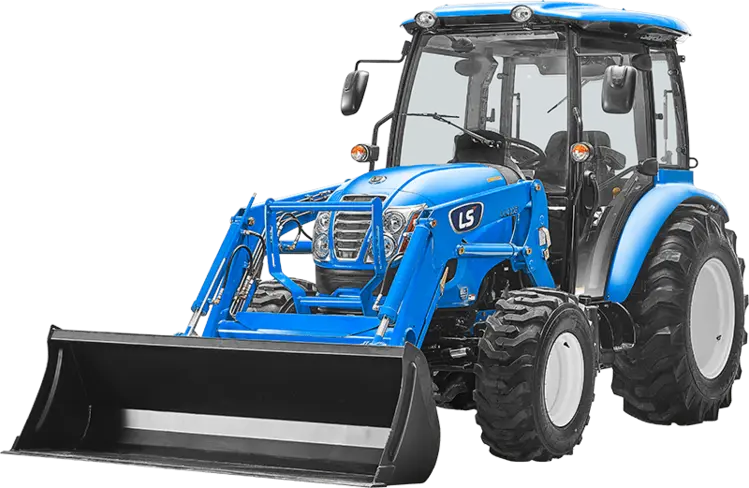

New LS TRACTOR MT357PCT/PCTC – 57HP | Compact Tractors
Have one to sell?
ConditionNew
New
The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive, hydrostatic transmissions or Powerclutch. All models feature an ergonomic design making this a truly premium tractor.
Features
6 Year Warranty*
Available In ROPS And Cab
HP Ranges Of 42, 47, 52, And 57
3 Range Hydrostatic Transmission (2 Pedal) With Pedal Link (Cab Model) F16 X R16 Synchro Shuttle Shift Gear
Premium Level Operator Comfort
PREMIUM COMPACT TRACTORS
Integrated Joystick
Provides Comfortable Access For Loader Operations. 3rd Function (Option)
3 Range Hydrostatic Transmission
(2 Pedal) Comfortable And Efficient Operator Control
Premium Feature Loader
2 Lever Skid Steer Coupler Allows For Universal Skid Steer Attachments
Standard Factory Grille Guard W/ Loader
Full Length Grille Guard Protects Body Panels And Radiator
High Capacity Three Point Hitch
Heavy-Duty Frame And Lift Cylinders Enable Three-Point Lift Capacity Of 2,755 lbs. At Hitch End
Standard Foldable ROPS
Provides Clearance Options
Ground Level Fueling
Easy Fueling Access
Telescopic Link Arms
Ease of Implement Attachment
Rear Window Wiper, Cab Model
Deluxe Feature For Better Visibility And Safety
ENGINE
Type: 3Cylinder, liquid-cooled, Diesel, TC, CRDI
Model (Tier 4): L3C19-T
Engine HP (Gross): 57
PTO HP: 48.4
Rated Speed (RPM): 2,600
Displacement (cu. in.): 114.7
Fuel Tank Capacity (gal): 12.4 (CABIN) / 10.6 (ROPS)
Alternator V-A: 12 – 70
DRIVE TRAIN
Transmission: Synchro shuttle / Powerclutch
No. of Speeds: F16 x R16(GEAR)
Brakes: Wet, Multi-disc
PTO
Type: Independent
Rear, rpm: 540
HYDRAULIC SYSTEM
Control System: Position/Draft
Implement pump (gpm): 8.2
Steering pump (gpm): 4.1 Gear
Total flow (gpm): 12.3 Gear
Category, 3 pt hitch: CAT 2
Hitch Lift capacity (lb): 2,755
Remote Valves: 2 PAIR (1 DETENT, 1 STD)
DIMENSION
Overall length, Bumper to link (in.): 133
Wheelbase (in.): 73.2
Overall width with tires (in.): 62.5
Height to top of rops (in.): 95 ROPS / 90 Cab
TIRE SIZE
Ag (Front / Rear): 9.5 – 16 / 13.6 – 24
IND (Front / Rear): 12 – 16.5 / 17.5L – 24
Turf Tire (Front / Rear) 28 x 8.5 – 15 / 41 x 14 – 20
WEIGHT
Total weight without ballast (lbs.): 3,869 – 4,380(cab)
