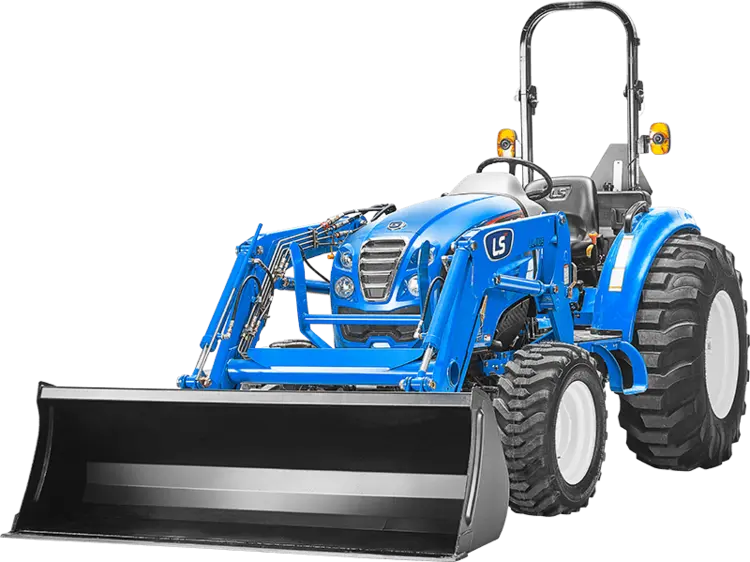

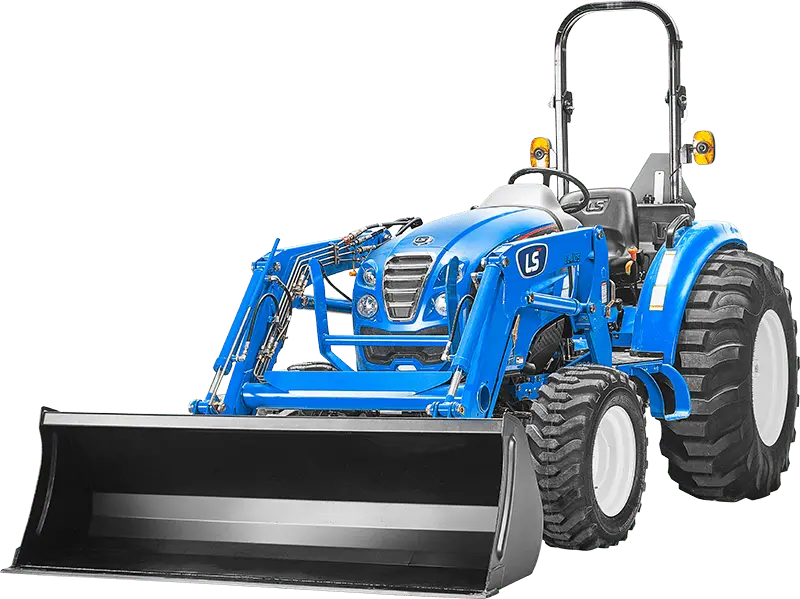

The MT3 series compact tractor comes in several configurations, one of these is the popular cab configuration. This feature along with high-performance and quality design makes this LS tractor series ready for a variety of applications.
Features:
4WD (FRONT WHEEL MECHANICAL ASSIST)
Go from 2WD to a 4WD with a simple move of a lever.
INDEPENDENT PTO
Easiest PTO to operate that can be turned on or off with a switch.
STANDARD 12×12 SYNCHRO SHUTTLE
Change gears without having to stop. 12 forward / 12 reverse gear transmission provides more operating speeds than others in its class for superior control, precision and safe operations for virtually any application.
SIDE MOUNTED MAIN GEAR LEVER
Maximizes space and makes getting on and off tractor easier than straddle type like other brands.
STANDARD 2 SETS OF REMOTE VALVES WITH DETENT
Adds functionality and improves ease of use by allowing attachment of hydraulically controlled implements without the high, additional costs like others in its class to add the remotes as options.
EXTENDABLE LOWER LINKS
Allows easier attachment of a wide variety of Category 1 implements with a 1,808 lb lift capacity.
STANDARD TILT & POWER STEERING
Makes turning easier, improves control and reduces fatigue.
FENDER MOUNTED JOYSTICK FOR FRONT END LOADER/H3>
EASILY ACCESSIBLE FOR MAXIMUM COMFORT AND CONVENIENCE.
STANDARD FOLDABLE ROPS
Allows Storage in low clearance buildings or sheds.
YOUR CHOICE OF TIRES AT NO ADDITIONAL COST*
Choose Ag, Industrial or Turf tires at no additional cost. *Subject to dealer inventory.
3-POINT HITCH
Category 1 with a hitch lift capacity of 1,808 lbs. allows usage of a wide variety of implements.
STANDARD HYDRAULIC POSITION AND DRAFT CONTROL
Easily accessible for maximum comfort and convenience.
STANDARD REAR WORK LIGHT
Adjustable light to improve visibility where you need it.
STANDARD DRAW BAR
Increases the usefulness of the tractor without the additional optional cost.
7 PIN CONNECTOR
Provides electrical Power for implements when needed.
LARGE FUEL TANK
Provides long operation times between fill-ups.
FLAT PLATFORM AND RUBBER MAT
Roomy, spacious and comfortable.
LS CRDI TIER 4 ENGINE
Generates more power with less noise, fuel consumption, vibration and emissions. Standard preheat starting aid helps starting in cold weather. Includes engine speed cruise control.
EASY OPEN ONE-PIECE STEEL HOOD
Provides accessibility for easy maintenance.
MODERN ERGONOMIC DESIGN
Ergonomically designed for comfort.
DELUXE ADJUSTABLE SEAT WITH ARM RESTS AND RETRACTABLE SEAT BELT
Keeps you in a comfortable and safe position for maximum control.
ENGINE
Type: Vertical Water-Cooled 4Cycle Diesel Engine
Model (Tier 4): L3C19-T
Engine HP (Gross): 40
PTO HP: 32.0
Rated Speed (RPM): 2,600
Displacement (cu. in): 114.7
Fuel Tank Capacity (gal): 12.4
Alternator: 12V – 70 Amps
DRIVE TRAIN
Transmission: HST
No. of Speeds: 3 Ranges (HST)
Brakes: Wet, Multi Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Mid PTO (Option): 2,000
Rear, rpm: 540 rpm
HYDRAULIC SYSTEM
Control system: Position / Draft
Implement pump (gpm): 8.2
Steering pump (gpm): 5.5(HST)
Total flow (gpm): 13.7(HST)
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb.): 1,808
Remote Valves: 2 Pairs (Front) / 2 Pairs (Rear)
DIMENSION
Overall length, Bumper to link in.: 128.3
Wheelbase (in.): 69
Overall width with tires (in.): 62
Ht to top of rops / cab., in. (in.): 86.6
TIRE SIZE
Ag Front/Rear: 7 – 14 / 11.2 – 24
Industrial Front/Rear: 25 x 8.5 – 14 / 43 x 16 – 20
Turf Front/Rear: 25 x 8.5 – 14 / 41 x 14 – 20
WEIGHT
Total weight without ballast (lbs.): 3,661
