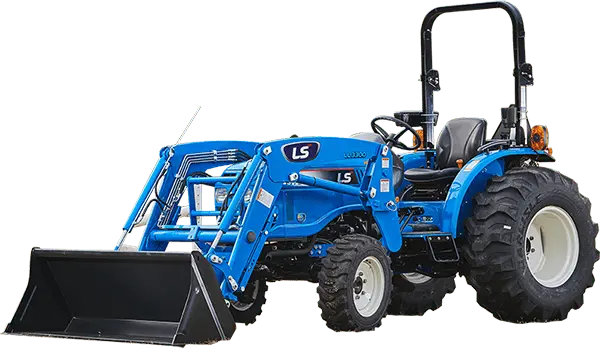

New LS TRACTOR MT225E – 24.6HP | Utility Tractors
Have one to sell?
ConditionNew
New
The MT225E Series is a high-value and feature rich compact utility tractor. Featuring high-capacity front-loader and three-point hitch is only the start of what this tractor series provides. Additional deluxe features like an electric engaged Independent PTO come standard.
Features:
• Eco-Friendly Tier 4, 24.7HP, 3 cylinder fuel efficient engine
• 6 year warranty*
• 12x12 synchro shuttle or 3 range HST with cruise control
• Front wheel mechanical assist 4WD
• Flat operator platform
• Choice of industrial, ag or turf tires at no additional cost
• Available quick attach front end loader with skid steer compatible bucket & grill guard • Available sub-frame mounted, quick attach 6’ backhoe
• Available front mount snow blower with hydraulic chute rotation
ENGINE
Type: 3 Cylinder, liquid-cooled, Diesel, NA, IDI
Model (Tier 4): Mitsubishi S3L2
Engine HP (Gross): 24.6
PTO HP: 19.2
Rated Speed (RPM): 2,500
Displacement (cu. in.): 80.4
Fuel Tank Capacity (gal): 7.4
Alternator (V-A): 12 – 50
DRIVE TRAIN
Transmission: Synchro shuttle
No. of Speeds: F12 x R12
Brakes: Wet, Multi Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Rear (rpm): Standard (540)
HYDRAULIC SYSTEM
Control System: Position
Implement pump (gpm): 7.9
Steering pump (gpm): 4.6
Total flow (gpm): 12.5
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb): 1,808
Remote Valves: Option
DIMENSION
Overall length, Frame to link, (in.): 118
Wheelbase (in.): 66
Overall width with tires, in. (in.): 54
Height to top of ROPS (in.): 88
TIRE SIZE
Ag Front/Rear: 7 – 14 / 11.2 – 24
IND Front / Rear 25 x 8.5 – 14 / 43 x 16 – 20
Turf Front / Rear 25 x 8.5 – 14 / 41 x 14 – 20
WEIGHT
Total weight without ballast (lbs.): 2,434
