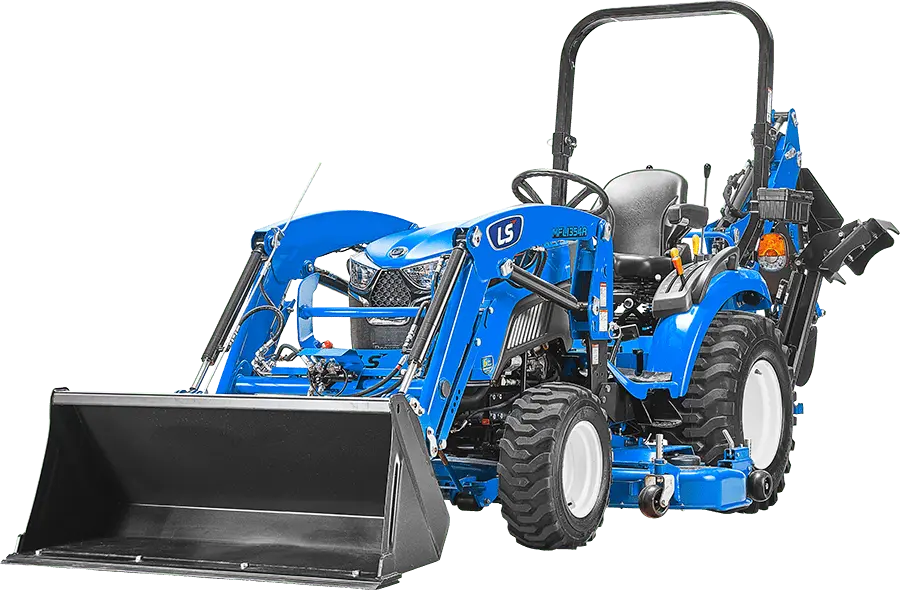

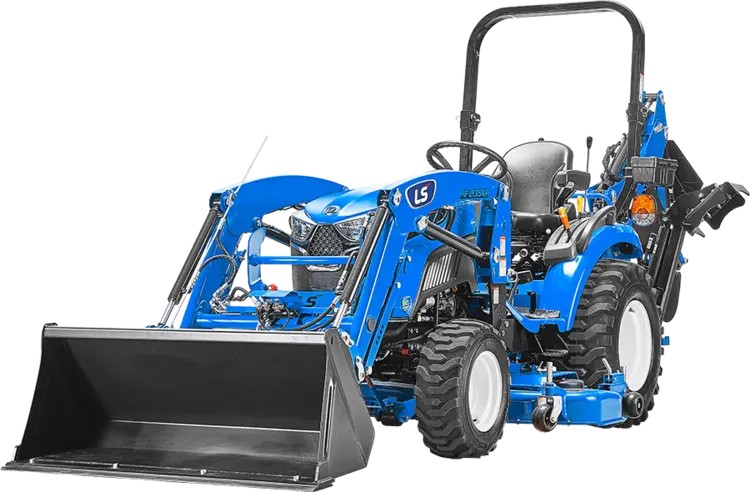

New LS TRACTOR MT225S – 24.7HP | Compact Tractors
Have one to sell?
ConditionNew
New
The MT2s provides a premium level compact tractor to customers wishing to have a high-performing and a highly featured compact tractor. The multitude of standard premium features include premium seat, two pedal hydrostatic transmission, flat operator platform, high- capacity loader and three-point hitch.
FEATURES:
6 Year Warranty*
24.7 HP Yanmar Diesel Engine
3 Range Hydrostatic Transmission (2 Pedal) Electric Engagement Independent PTO New Heavy-Duty Platform/Frame
ENGINE
Type: 3Cylinder-IDI
Model (Tier 4): 3TNV80F-ZXKLST(YANMAR)
Engine HP (Gross): 24.7
PTO HP: 19.3
Rated Speed (RPM): 2,800
Displacement (cu. in.): 77.3
Fuel Tank Capacity (gal): 6.79
Alternator (V-A): 12-40
DRIVE TRAIN
Transmission: HST
No. of Speeds: 3 Ranges
Brakes: Wet, Multi Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Rear (rpm): 540
Mid PTO (option): 2,500
HYDRAULIC SYSTEM
Control System: Position
Implement pump (gpm): 5.6
Steering pump (gpm): 3.7
Total flow (gpm): 9.3
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb): 1,896
Remote Valves: 1 PAIR (Option)
DIMENSION
Overall length, Frame to link, (in.): 111.9
Wheelbase (in.): 63.4
Overall width with tires, in. (in.): 48.7
Height to top of ROPS (in.): 86.4
TIRE SIZE
IND (Front/Rear): 23 x 8.5 – 12 / 12 – 16.5
Versa Turf (Front/Rear): 12 x 16.5/23 x 8.5
WEIGHT
Total weight without ballast (lbs.): 1,764
