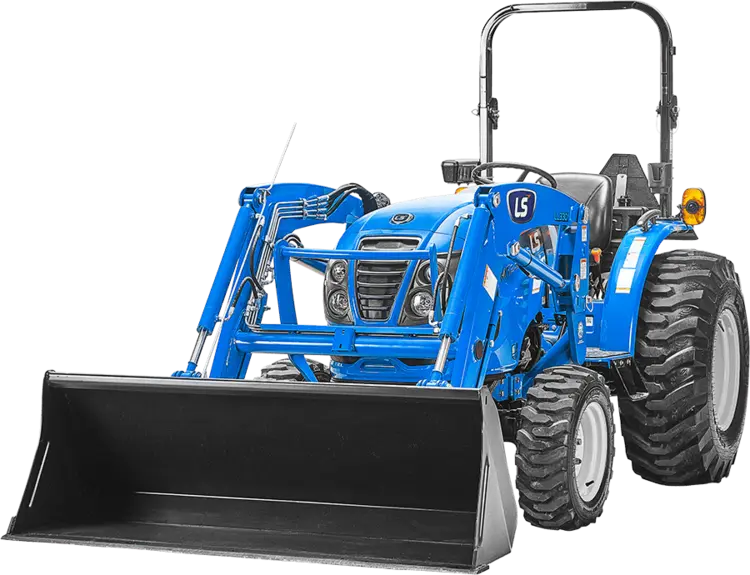

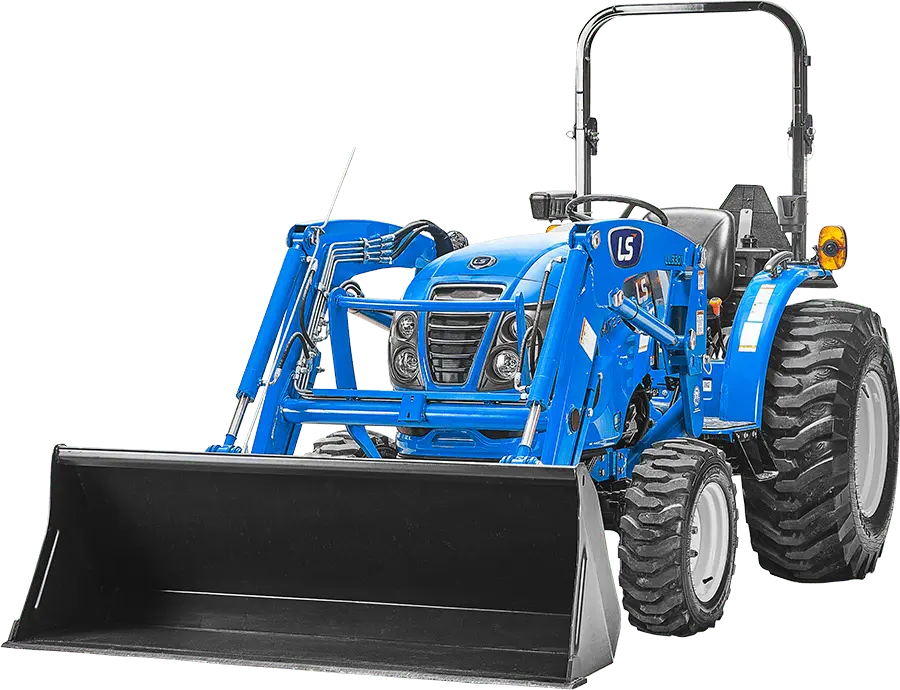

New LS TRACTOR MT235HE – 35HP | Compact Tractors
Have one to sell?
ConditionNew
New
The MT2E Series provides customers with value and affordable horsepower. This series not only promotes a variety of horsepower’s, but also boast numerous features and implements that can make this series a perfect fit for many applications.
FEATURES:
6 Year Warranty*
Available In 30 HP, 35 HP And 40 HP
3 Range Hydrostatic Transmission (2 Pedal) F12xR12 Synchro Shuttle Gear Drive Models High Capacity And Performance
ENGINE
Type: 3-cylinder, CRDI, liquid-cooled, Diesel, NA
Model (Tier 4): L3C19-D2
Engine HP (Gross): 35
PTO HP: 28
Rated Speed (RPM): 2,600
Displacement (cu. in.): 114.7
Fuel Tank Capacity (gal): 7.4
Alternator (A-V): 12V – 70
DRIVE TRAIN
Transmission: HST
No. of Speeds: 3 Ranges
Brakes: Wet, Multi Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Rear RPM: 540 (Standard)
Mid RPM: 2,000 (Option)
HYDRAULIC SYSTEM
Control System: Position
Implement pump (gpm): 8.2
Steering pump (gpm): 5.5
Total flow gpm: 13.7
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb): 1808
Remote Valves: Option
DIMENSION
Overall length Frame to Link (in.): 121
Wheelbase (in.): 69
Overall width with tires (in.): 54
Height to top of ROPS(in.): 88
TIRE SIZE
Ag Front/Rear: 7 – 14 / 11.2 – 24
IND Front / Rear 25 x 8.5 – 14 / 43 x 16 – 20
Turf Front / Rear 25 x 8.5 – 14 / 41 x 14 – 20
WEIGHT
Total weight without ballast (lbs).: 2,870
