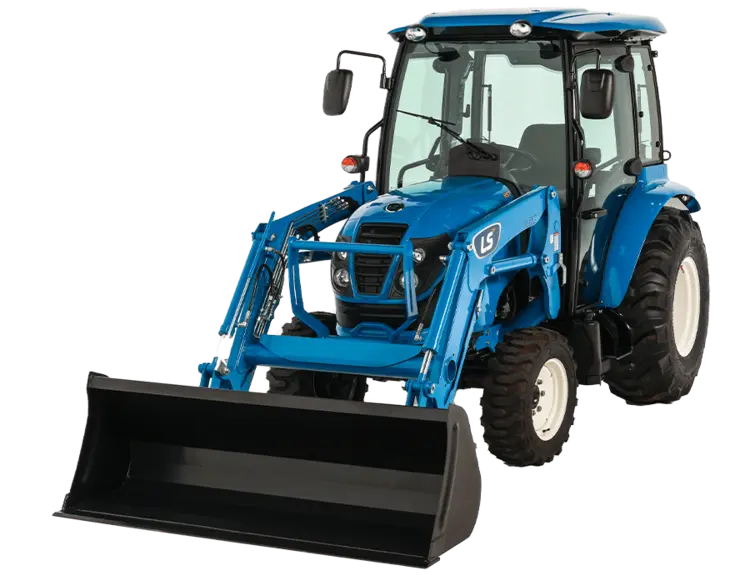

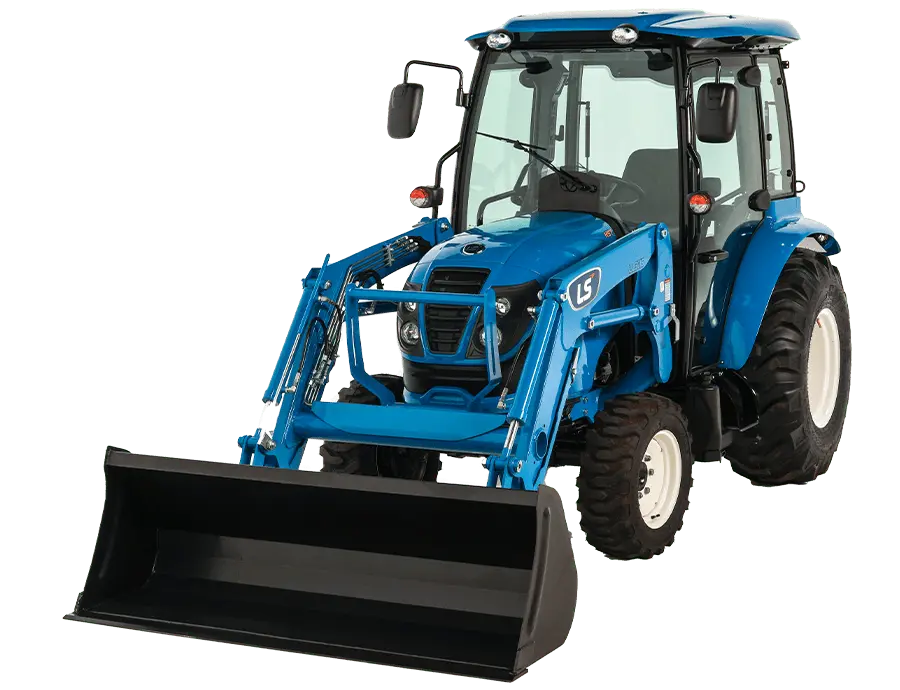

New LS TRACTOR MT235EC – 35HP | Compact Tractors
Have one to sell?
ConditionNew
New
The MT235 EC (35HP) features an economy cab with a substantial number of features. Features include a premium cloth seat, rubber floor mat, and more. A 12X12 synchro-shuttle transmission is standard.
Features:
LEFT AND RIGHT CAB DOORS
Premium Seat Providing Access To Either Side Of The Cab
3 RANGE HYDROSTATIC TRANSMISSION
Provides Comfort And Excellent Controllability Of Tractor Movement
3 STANDARD DUAL MIRRORS
Provide Added Visibility
3 STANDARD DRAWBAR
Provides Value And Enables Trailering etc.
3 GROUND LEVEL FUELING
Provides Easy Access
STANDARD GRILLE GUARD WITH LOADER
Provides Added Protection
HIGH-CAPACITY LOADER
With High Lift Height And Standard Skid Steer Coupler
STANDARD INTEGRATED JOYSTICK
Mid Mount Valve, Providing Deluxe Fit And Finish
ELECTRONIC PTO
For Ease Of Use
ENGINE
Type: Vertical Water-Cooled 4Cycle Diesel Engine
Model (Tier 4): L3C19-T
Engine HP (Gross): 35
PTO HP: 29.7
Rated Speed (RPM): 2,600
Displacement (cu. in.): 114.7
Fuel Tank Capacity (gal): 12.4
Alternator (A-V): 12V – 70
DRIVE TRAIN
Transmission: Synchro shuttle
No. of Speeds: F12 X R12 (GEAR)
Brakes: Wet, Multi-Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Rear RPM: 540 (Standard)
Mid RPM: 2,000 (Option)
HYDRAULIC SYSTEM
Control System: Position/Draft
Implement pump (gpm): 8.2
Steering pump (gpm): 4.1(GEAR)
Steering: Hydrostatic Power Steering
Total flow (gpm): 12.3 (GEAR)
Category, 3 pt hitch: CAT 1
Hitch Lift capacity (lb): 1,808
Remote Valves: Option
DIMENSION
Overall length Frame to Link (in.): 128.3
Wheelbase (in.): 69
Overall width with tires (in.): 62
Height to top of ROPS(in.): 86.6
TIRE SIZE
Ag Front/Rear: 7 – 14 / 11.2 – 24
IND Front / Rear 25 x 8.5 – 14 / 43 x 16 – 20
Turf Front / Rear 25 x 8.5 – 14 / 41 x 14 – 20
WEIGHT
Total weight without ballast (lbs).: 3,589
