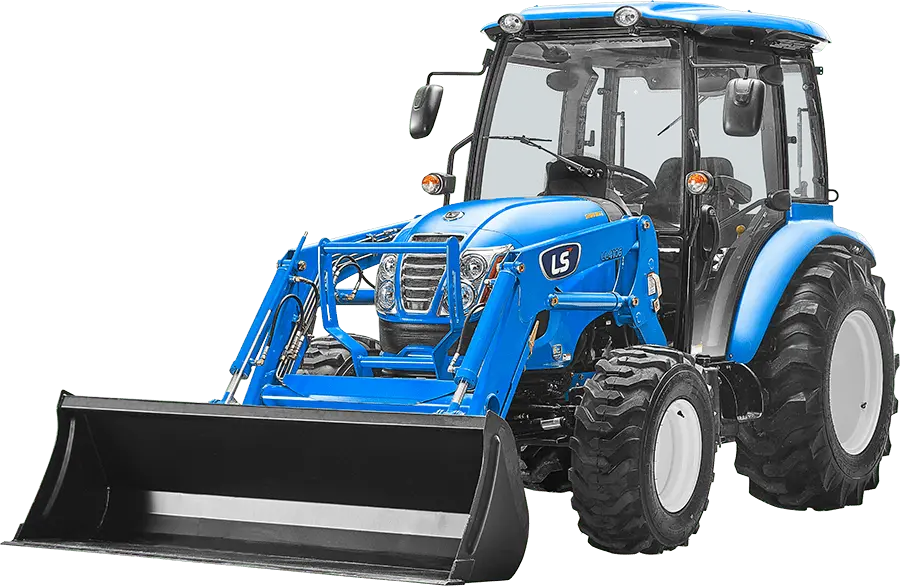

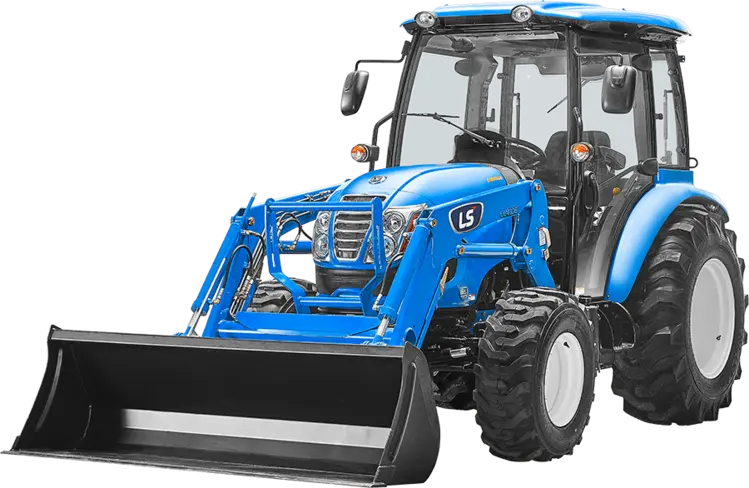

New LS TRACTOR MT468C – 68HP | Utility Tractors
Have one to sell?
ConditionNew
New
The MT4 features a variety of configurations enabling you to find the exact configuration you need. A ROPS and Cab version are available with highly featured operator platforms/cabs. The ergonomic design provides all-day comfort, as the robust frame provides high-capacity front loader and three point lift.
FEATURES:
6 Year Warranty*
16F x 16R Fully Synchronized Shuttle Shift or 16F x 16R Power Shuttle Shift (CPS Models) Transmission
Backhoe Compatible
Premium Ergonomically Designed Cab
Standard High Capacity Three-Point And Loader Lift Capacity
ENGINE
Type: Vertical Water-Cooled 4Cycle Diesel Engine
Model (Tier 4): L4C25-T
Engine HP (Gross): 68
PTO HP: 60
Rated Speed (RPM): 2,500
Displacement (cu. in): 152.8
Fuel Tank Capacity (gal): 21.1
Alternator(V-A): 12 – 70
DRIVE TRAIN
Transmission: Synchro Shuttle / Power Shuttle
No. of Speed: F16 x R16
Brakes: Wet, Multi Disc
Steering: Hydrostatic Power Steering
PTO
Type: Independent
Rear, rpm: 540
HYDRAULIC SYSTEM
Control System: Position/Draft
Implement pump (gpm): 9.9
Steering pump (gpm): 4.6
Total flow (gpm): 14.5
Category, 3 pt hitch: CAT II
Hitch Lift capacity, lbs(Hitch end): 4,079
Remote Valves: 2 pairs (Front), 2/3 pairs (Rear)
DIMENSION
Overall length with 3pt (in.): 138.6
Wheelbase (in.): 80.3
Min. overall width with Ag tires (in.): 70
Height to top of Cab with Ag tires (in.): 103
TIRE SIZE
Ag Front/Rear: 9.5 – 20 / 16.9 – 24
Industrial Front/Rear: 10.5/80 – 18 / 19.5L – 24
WEIGHT
Total weight without ballast (lbs.): 4,674
