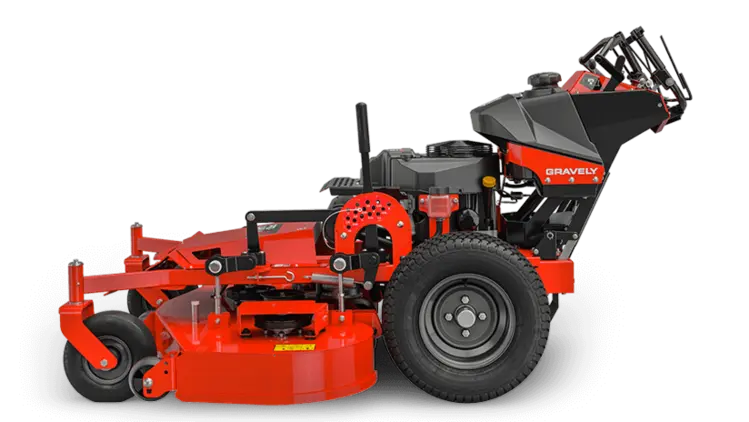

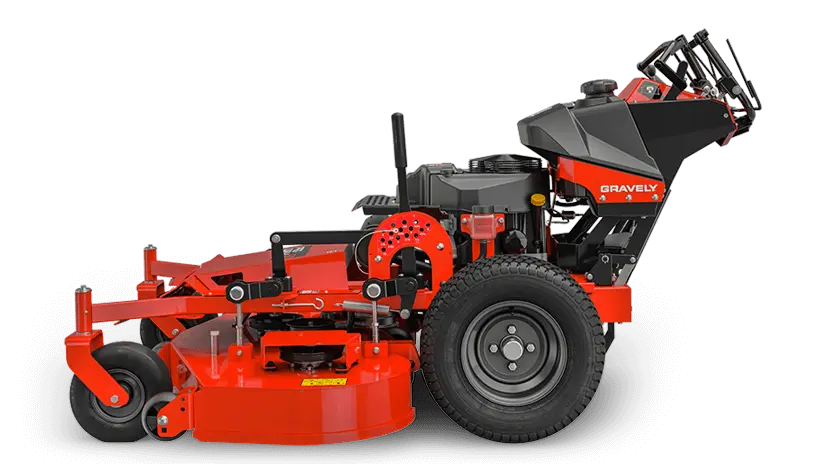

A SMOOTH OPERATOR.
Change speed with the simple glide of its hydro lever for easy maneuvering. Don't let its easy maintenance and smooth handling fool you, this commercial walk-behind is built tough and will perform season after season.
Power Train
Engine Kawasaki® FS691V
Horsepower 23
Engine Displacement 44.3 in / 725.9 cc
Fuel System Gas
Fuel Capacity 5.8 gal / 22 ltr
Drive System Hydro-Gear® ZT-2800® Transaxles
Brake Type Lever Activated Parking
Driver Position Walk
Ground Speed Forward 8 mph / 12.9 kph
Ground Speed Reverse 3 mph / 4.8 kph
Wheels Front 11.0 x 4.0 in - 5.0 in (27.9 x 10.2 cm - 27.9 cm)
Wheels Rear 20.0 x 8.0 in - 10.0 in (50.8 x 20.3 cm - 25.4 cm)
Electric
Battery Capacity 300 CCA
Battery Type Lead Acid - Maintenance Free
Battery Size U1
Deck
Deck Size 60 in / 152.4 cm
Coverage Hour 4.8 acres / 1.9 hectares
Deck Material 10 ga
Deck Construction Fabricated X-Factor® 3
Discharge Configuration Side
Cutting Height Min 1.5 in / 3.8 cm
Cutting Height Max 5 in / 12.7 cm
Cutting Width 60 in / 152.4 cm
Dimensions
Weight (assembled) 795 lb
Length 71.8 in / 182.4 cm
Width 60 in / 152.4 cm
Width (Chute Up) 63 in / 160 cm
Width (Chute Down) 75.1 in / 190.8 cm
