GIVE YOUR LAWN THE BIG ACERAGE TREATEMENT.

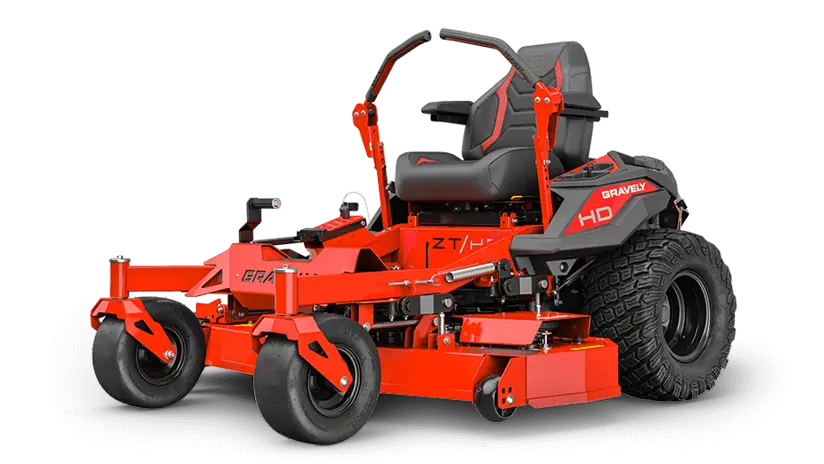

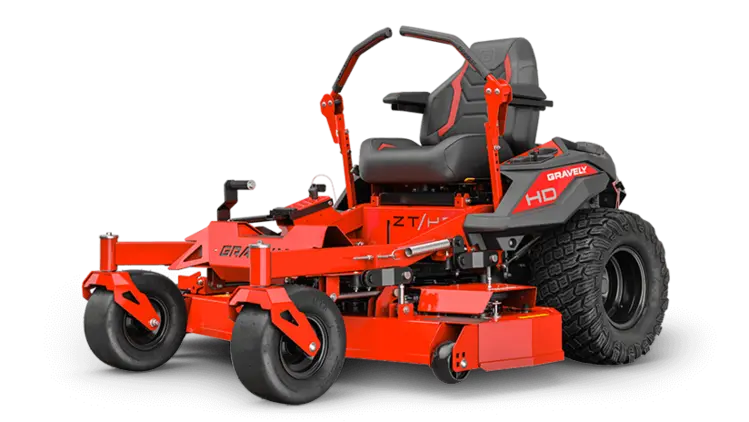

The Gravely ZT brings commercial features and construction to a residential compact design. This is a comfortable, durable zero-turn mower that gives you the maneuverability you need to finish the job quickly – without sacrificing a beautifully cut lawn.
Power Train
Engine Kawasaki® FR691V
Horsepower 23
Engine Displacement 44.3 in / 726 cc
Fuel Capacity 5.1 gal / 19.3 ltr
Drive System Hydro-Gear® ZT-3100® Transaxles
Transmission Type Hydrostatic
Brake Type Lever Activated Parking
Driver Position Sit
Ground Speed Forward 8 mph / 12.9 kph
Ground Speed Reverse 4 mph / 6.4 kph
Wheels Front 13.0 x 6.5 in - 6.0 in (33.0 x 16.5 cm - 33.0 cm)
Wheels Rear 22.0 x 11.0 in - 10.0 in (55.9 x 27.9 cm - 25.4 cm)
Electric
Battery Capacity 190 CCA
Number of Batteries 1
Battery Voltage 12
Battery Type AGM
Battery Size U1 Compatible
Deck
Deck Size 52 in / 132.1 cm
Coverage Hour 4.2 acres / 1.7 hectares
Spindle Type Mechanical
Deck Material 7 ga
Deck Construction Fabricated X-Factor® 3
Discharge Configuration Side
Cutting Height Min 1.5 in / 3.8 cm
Cutting Height Max 5 in / 12.7 cm
Cutting Width 52 in / 132.1 cm
Dimensions
Weight (assembled) 817 lb
Length 79 in / 200.7 cm
Width (Chute Up) 56.2 in / 142.7 cm
Width (Chute Down) 67.3 in / 170.9 cm
